70-90 KM
Range
23 KM/H
Top Speed
1.5 kw
Motor Power

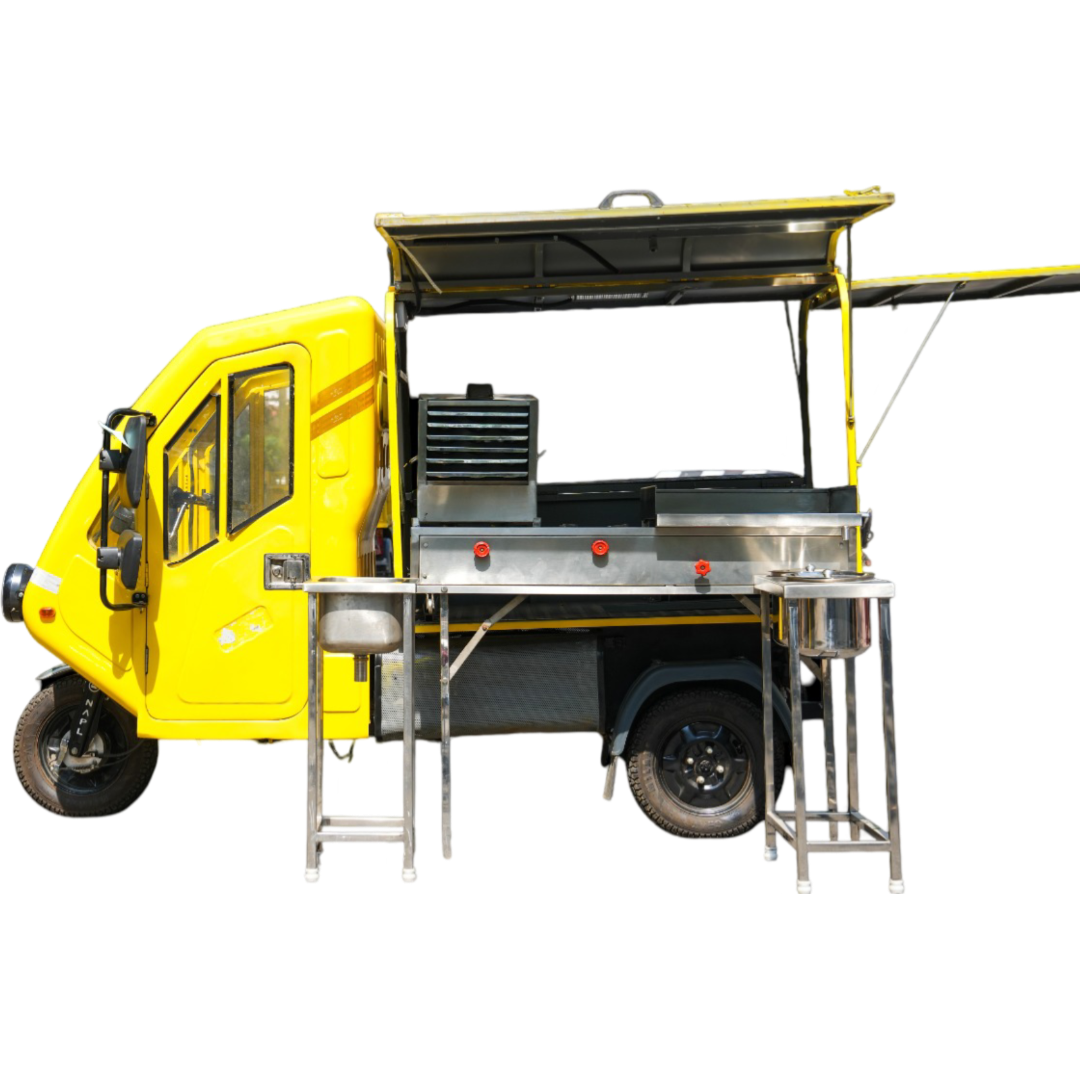

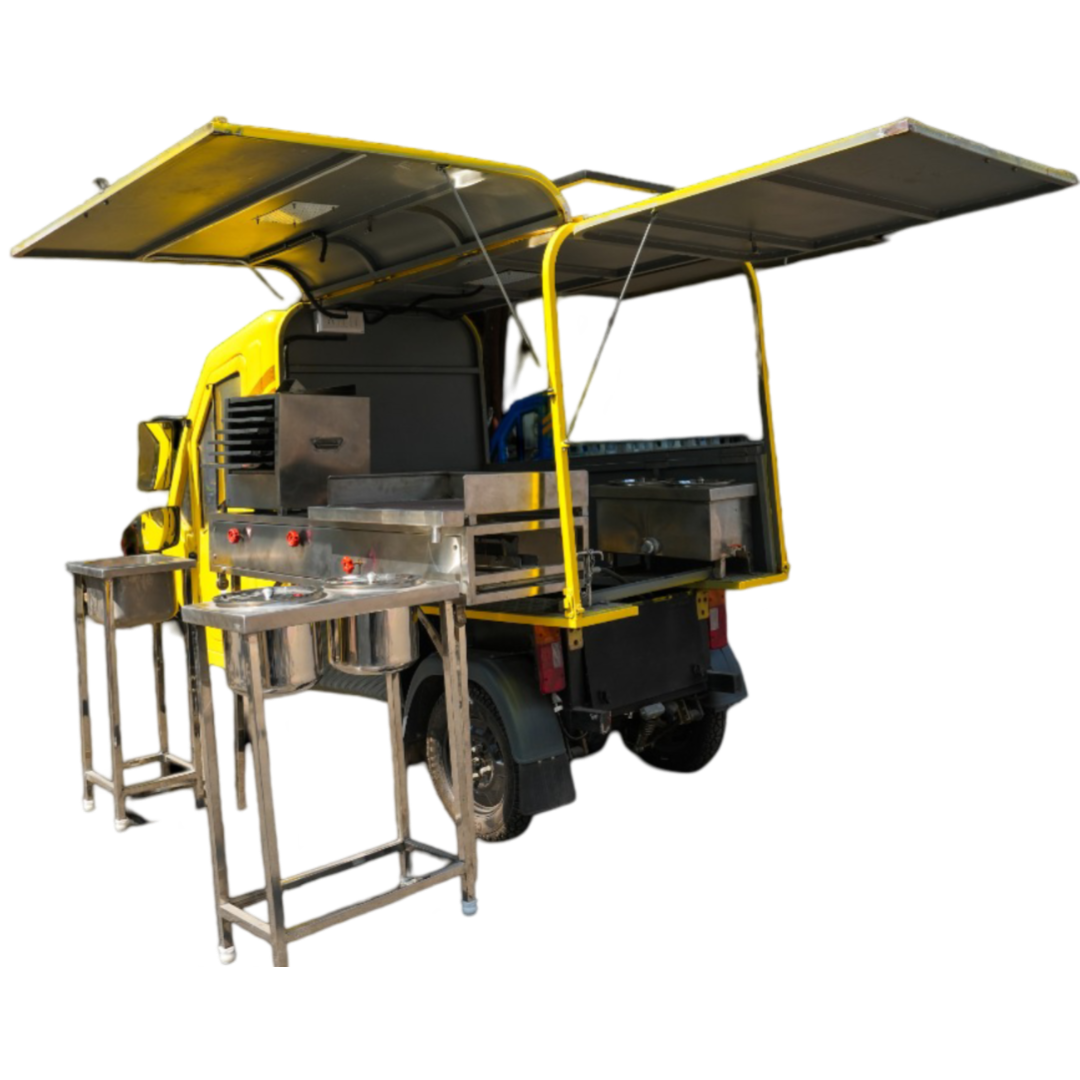

Kitchen Cart

Kitchen Cart

Product Specifications

TECHNICAL SPECIFICATIONS

  • VEHICLE TYPE: Kitchen Cart
  • VEHICLE SEATING CAPACITY: Driver Only

BATTERY & POWER

  • BATTERY TYPE: Li-ion Battery (LFP)
  • BATTERY CAPACITY: 100 ah
  • MOTOR TYPE: BLDC ip67
  • MOTOR POWER: 1.5 kw
  • PEAK TORQUE : 23NM

TRANSMISSION

  • TRANSMISSION TYPE: Single Speed

SUSPENSION & BRAKE

  • FRONT SUSPENSION: Hydraulic 43mm With Coil Spring
  • REAR SUSPENSION: Leaf Spring With Damper
  • STEERING: Handle Bar
  • BRAKE: Drum Brake Mechanically Actuated
  • WHEEL RIM: 2.15 J-12"
  • TYRE: 3.75 - 12"

DIMENSION

  • WHEELBASE: 2080 mm
  • GROUND CLEARANCE: 145 MM
  • VEHICLE DIMENSIONS (L X W X H): 2800 MM X 980 MM X 1780 MM
  • LOAD BODY DIM (L X W X H):1460 MM X 970 MM X 1100 MM

WEIGHT

  • GROSS VEHICLE WEIGHT: 728 Kgs.

PERFORMANCE

  • TOP SPEED: 23 KM/H
  • TYPICAL DRIVING RANGE: 70-90 KM
  • GRADEABILITY: 12%

CHARGER

  • CHARGER TYPE: Off-Board Charger
  • CHARGE DURATION: 6 Hrs.

OTHERS

  • FRONT WIND SHIELD: Laminated Glass with Wiper & its Motor
  • CABIN: Shell Cabin
  • HEADLIGHT & INDICATOR: Halogen
  • METER: Analog Meter

Advanced Features

01

High Motor Efficiency

02

One time charge range 70 to 90 km

03

Recharge time 6 Hrs

04

1500 w Motor

05

Lithium / Lead Acid Battery

06

Parking Brake

07

Accessories Box

08

Water Bottle Holder

09

Weight 310 kg

10

Max Speed 23 kmph
